Centerless polishing cells, bar and tube polishers, linear pipe polishing cells, automated belt sanders and buffing cells.
All shapes, sizes and weights in a wide range of metals.
We polish:

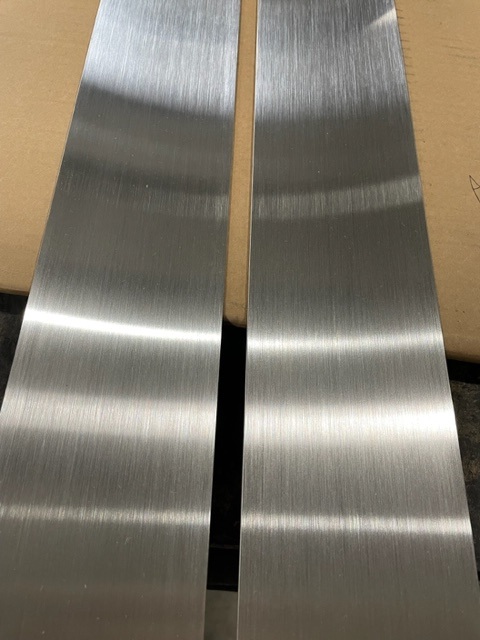

- Sheared and edged flat bar or true bar.

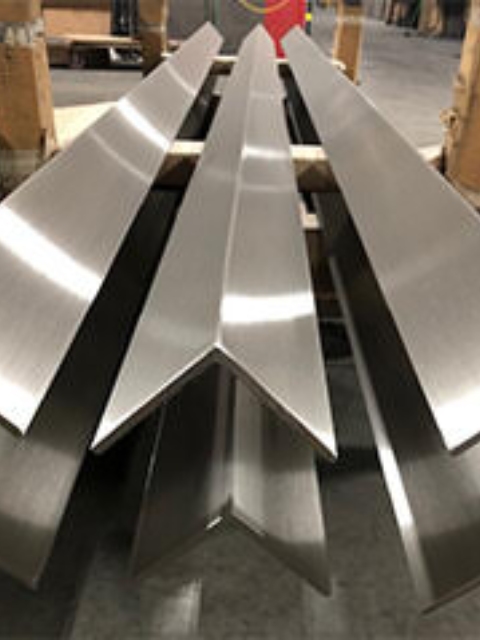

- Outside and Inside of angle down into the corner.

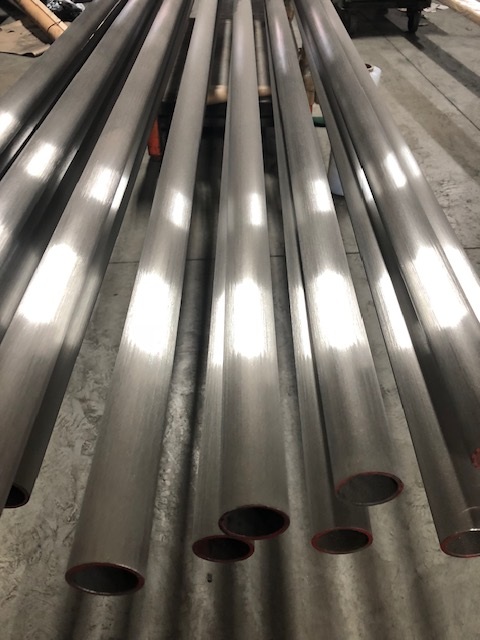

- Linear/Longitudinal or Circumferential grain direction on pipe or round tube.

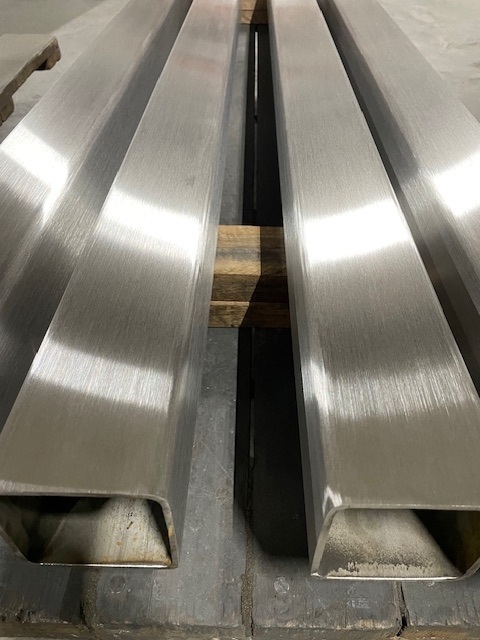

- Corners and flats on square and rectangle tube.
- ID on pipe and round tube on 20’ lengths.
- All surfaces on U channel and I Beam.
- Satin brush #4, #6.

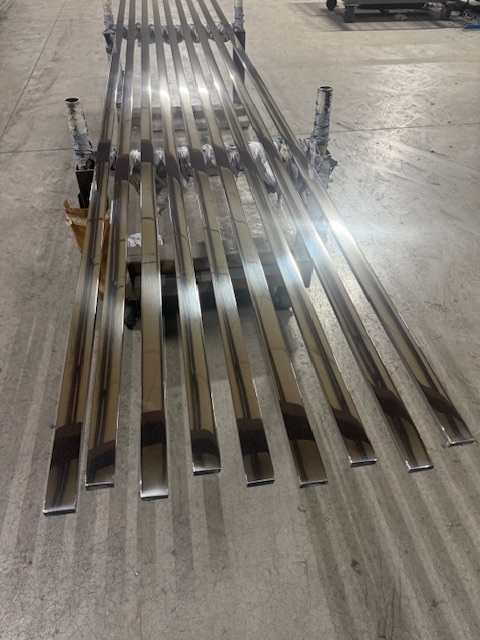

- Mirror finish #7, #8.
- Non-directional #4, #6.
- Any specific RA, RMS,
Pit-free with certs available upon request.
Bar, Tube, Angle, Rod, I-Beam, U-Channel Metal Polishing Capabilities:
| Processes | Automated CNC Mechanical Hand |
| Equipment Used | Centerless Polishers Automated Belt Sanders Hand Tools Linear Pipe Polishing Cells Automated Buffing Cells |
| Part Length | No limitation imposed by the equipment or facility |
| Part Width | No limitation imposed by the equipment or facility |
| Part Height | No limitation imposed by the equipment or facility |
| Part Weight | No practical limit |
| Finishes Available | #4 Architectural #4 Sanitary, Pharmaceutical #6 Non-directional #7 & #8 Mirror Any Specific RA Finish |
| Substrates | Aluminum Stainless Steel Hastelloy Inconel Steel Titanium Brass Bronze Copper Beryllium |
| Other Features | Protective packaging for shipment |
| Customer Services | Part development, engineering, and consulting services to recommend process improvements JIT, Kanban Quality Audits |
| Intended Application | Aesthetic & Sanatary Fabrication |
| Industry Focus | Aerospace Agricultural Appliance Architectural Auto/Truck/Transportation Casino Chemical Dairy Electronic Entertainment Laboratory Medical Military Molding Nuclear Pharmaceutical Semiconductor |
| Industry Standards | ISO (ISO 9001:2015 Certified) ANSI AS ASME ASTM FDA Mil-Spec NADCAP CTL 11 Mil-Spec (Northrup Grumman) Mil-T-81533 (Northrup Grumman) NiDi 9012 for Stainless Steel Finishes P.S. 12020 (Boeing) RA0110-048 (Boeing) ASME B46.1 for Surface Texture ASTM D4080 |
